Description

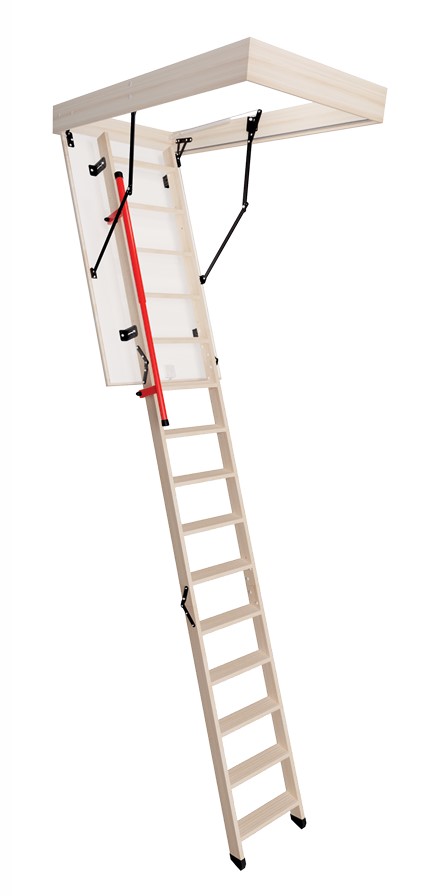

The Thermo, is our standard model pull down attic ladder. This unit comes with a 26mm insulated, draft sealed and spring assisted trapdoor and a sturdy, three-part, pine, folding ladder. Also check out our “Maxi Thermo” model, which has double the insulation and a second air seal.
This product should be considered for installation by carpenters, but if you are an advanced DIYer you should be capable of installing it. Please be aware that when purchasing this product, it is your responsibility to ensure it is suitable for installation and that you will need your own tools, materials and fixings.
Returns will not be accepted where the product packaging has been opened and/or tampered with.
| TRAPDOOR THICKNESS |
26 MM |
| INSULATION THICKNESS |
20 MM |
| U-VALUE |
1.22 W/M2*K |
| SEALS |
ONE DRAFT SEAL |
| COLOUR OF TRAPDOOR (BOTH SIDES) |
WHITE |
| FOLDING TIMBER LADDER |
3 SECTIONS |
| FRAME SIZES AVAILABLE |
1100 X 550 – 1100 X 600 – 1100 X 700 MM |
| FRAME HEIGHT |
135 MM |
| LADDER WIDTH |
400 MM |
| STEP WIDTH |
358 MM |
| STEP DEPTH |
80 MM |
| HANDRAIL |
D-HANDRAIL |
| MAXIMUM LOAD |
160 KG |
| FLOOR PROTECTOR |
PROTECTIVE FEET |
| LANDING SPACE |
1340 MM |
| OPENING DISTANCE/CLEARANCE NEEDED |
1600 MM |
| MAXIMUM CEILING HEIGHT |
2800 MM* (we recommend 10 mm less) |
| OPENING SIZE REQUIRED |
10 MM MORE THAN FRAME |
| OPENING METHOD |
STOWING POLE INCLUDED |
| FIXINGS |
NOT INCLUDED |
| ARCHITRAVE/TRIM |
NOT INCLUDED |
| CERTIFICATION/STANDARDS |
(BS) EN 14975 / FSC C100395 |
| GUARANTEE |
3 YEAR PARTS |
*Measurements given, may not be exact, to the millimetre, measurements.
